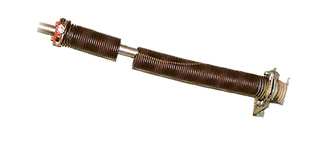

How to Measure your Torsion Spring
This method of measuring your torsion spring requires you to measure the existing springs. Use this method if the door worked correctly before the spring(s) broke and the garage door has not been tampered with. To measure the torsion springs, follow each of the following steps carefully. If the garage door has two springs measure each spring individually. It is not uncommon to have two different size springs. If you prefer a matching set, we can convert a mismatched set to a matching set. You can also always call us at 260-691-3822.
Step 1 Determine Springs ID (Inside Diameter)
For your broken spring(s) measure the inside diameter of the spring. If the spring is in one piece you can find the diameter on the cones, p175=1 3/4" and p200=2". Typically residential springs will have a 1 3/4" or 2" inside diameter.
Step 2 Determine Spring Wind

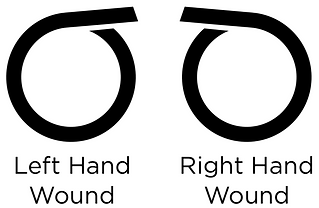

Most standard residential torsion systems have two torsion springs, one on the right and left. The Left spring is right hand wound(RHW), and the right spring is left hand wound(LHW). If one spring is broken on your torsion system, we highly recommend replacing both springs.
Right Wound
Left Wound
Center Mount
Red Winding Cone
Black Winding Cone
Left Wound
Right Wound
(Red Winding Cone)
(Black Winding Cone)
Step 3 Determine Wire Size
The most efficient way to measure the wire size is to measure 10 coils and then measure 20 coils and compare the measurements to the chart below. Measure to the nearest 1/16" of an inch. It is important to make sure there are no gaps between the coils. Measuring coils that have gaps will give incorrect measurements.
Step 4 Determine Spring Length
When measuring your torsion spring, remember that in order to get a proper measurement the spring must be un-wound. If the spring is in two parts, unscrew set screws and connect spring ends together to get a total measurement. Do not include the cones in the measurement.
